Dong guan Chuang Ke New Eenergy Co.,Ltd
|

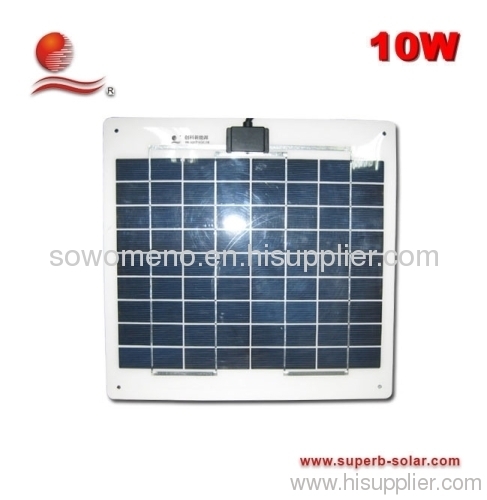

10w No border solar panel(CKPV-10W No border solar panel-6P36)
| Price: | 25.99~28.99 USD |
| Payment Terms: | T/T |
| Place of Origin: | Guangdong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Performance
Rated Power 10W
Power Tolerance ±5%
Nominal Voltage 18V
Design Life 25 years
Electrical Characteristics | |
Maximum Power [Pmax] | 10W±5% |
Maximum Power Voltage [Vmp] | 18V±3% |
Maximum Power Current [Imp] | 0.55A±3% |
Short-Circuit Current [Isc] | 0.61A±3% |
Open-Circuit Voltage [Voc] | 21.6V±3% |
Current Temperature Coefficient | 0.08%/°C |
Voltage Temperature Coefficient | - 0.32%/°C |
Power Temperature Coefficient | -0.38%/°C |
Maximum System Voltage | 1000V |
Under Standard Test Conditions(STC): Irradiance of 1000W/m2,Am1.5 and 25℃ cell temperature
Mechanical Characteristics
Dimensions:345mm(L) x 315mm(W) x18mm(H)
Weight: 0.71kg
Solar Cells: Polycrystalline solar cells,36cells in 2x18matrix connected in series
Construction: Front: transparent PET; Encapsulate: EVA; Back: 3mm Aluminum plate
Module Warranty:
10-year limited warranty of 80% power output; 8-year limited warranty of 90% power output; 5-year limited warranty of materials and workmanship.
